// // Generate g-code for milling PC boards. // // Copyright 2004-2013 by John Johnson Software, LLC. // See readme.html for copyright information. // #include "source/pcb-gcode.h" #include "settings/pcb-defaults.h" #include "settings/pcb-machine.h" #include "settings/gcode-defaults.h" #include "settings/pcb-gcode-options.h" #include "source/filecopy.h" #include "source/math.h" #include "source/filename_subs.h" #include "plugin_headers.h" int m_current_units = OUTPUT_UNITS; string m_uom_suffix = "unknown"; string M_UOM_SUFFIXES[] = { "mc", // microns "mm", // millimeters "ml", // mils "in" // inches }; int m_setup_was_changed = NO; string m_cmd; string FILENAME_TOP_ETCH_FILE_SAMPLE; string FILENAME_TOP_DRILL_FILE_SAMPLE; string FILENAME_TOP_MILL_FILE_SAMPLE; string FILENAME_TOP_TEXT_FILE_SAMPLE; string FILENAME_TOP_FILL_FILE_SAMPLE; string FILENAME_BOT_ETCH_FILE_SAMPLE; string FILENAME_BOT_DRILL_FILE_SAMPLE; string FILENAME_BOT_MILL_FILE_SAMPLE; string FILENAME_BOT_TEXT_FILE_SAMPLE; string FILENAME_BOT_FILL_FILE_SAMPLE; string temp_str; void set_uom_suffix(int n) { m_uom_suffix = M_UOM_SUFFIXES[n]; } string get_uom_suffix() { return m_uom_suffix; } void write_bool_param(string name, int value) { printf("int %s = %s;\n", name, (value) ? "YES" : "NO"); } void write_int_param(string name, int value) { printf("int %s = %d;\n", name, value); } void write_int_defined(string name, string value) { printf("int %s = %s;\n", name, value); } void write_real_param(string name, real value) { printf("real %s = %f;\n", name, value); } void write_string_param(string name, string value) { printf("string %s = \"%s\";\n", name, value); } // UNIT CONVERSION BEGIN TAG DO NOT REMOVE void convert_units(int new_units) { MILLING_DEPTH = convert(MILLING_DEPTH, m_current_units, new_units); TEXT_DEPTH = convert(TEXT_DEPTH, m_current_units, new_units); SPOT_DRILL_DEPTH = convert(SPOT_DRILL_DEPTH, m_current_units, new_units); ISO_MIN = convert(ISO_MIN, m_current_units, new_units); ISO_MAX = convert(ISO_MAX, m_current_units, new_units); ISO_STEP = convert(ISO_STEP, m_current_units, new_units); DEFAULT_WIDTH = convert(DEFAULT_WIDTH, m_current_units, new_units); DEFAULT_Z_HIGH = convert(DEFAULT_Z_HIGH, m_current_units, new_units); DEFAULT_Z_UP = convert(DEFAULT_Z_UP, m_current_units, new_units); DEFAULT_Z_DOWN = convert(DEFAULT_Z_DOWN, m_current_units, new_units); DRILL_DEPTH = convert(DRILL_DEPTH, m_current_units, new_units); TOOL_CHANGE_POS_X = convert(TOOL_CHANGE_POS_X, m_current_units, new_units); TOOL_CHANGE_POS_Y = convert(TOOL_CHANGE_POS_Y, m_current_units, new_units); TOOL_CHANGE_POS_Z = convert(TOOL_CHANGE_POS_Z, m_current_units, new_units); FEED_RATE = convert(FEED_RATE, m_current_units, new_units); FEED_RATE_Z = convert(FEED_RATE_Z, m_current_units, new_units); EPSILON = convert(EPSILON, m_current_units, new_units); set_uom_suffix(OUTPUT_UNITS); dlgRedisplay(); m_current_units = new_units; } // UNIT CONVERSION END TAG DO NOT REMOVE // Copy the *.release.h files to *.h, thereby restoring // their default contents. void restore_file_defaults() { string restore_files[]; string file_name; int num_files; int i; int release_start; num_files = fileglob(restore_files, g_path + "/safe_options/" + "*.release.h"); if (num_files == 0) { dlgMessageBox("There aren't any .release.h files," " perhaps you should reinstall the program?"); exit(0); } for (i=0; i < num_files; i++) { release_start = strrstr(restore_files[i], ".release.h"); file_name = strsub(restore_files[i], 0, release_start) + ".h"; filecopy(restore_files[i], file_name); } filecopy(g_path + "/profiles/generic.pp", g_path + "/settings/gcode-defaults.h"); } int pp_selection = -1; string pp_files[]; string pp_auth_desc[]; int num_pp_files; num_pp_files = fileglob(pp_files, g_path + "/profiles/*.pp"); for(int i=0; i < num_pp_files; i++) { string lines[]; pp_auth_desc[i] = pp_files[i]; int num_lines = fileread(lines, pp_files[i]); for(int j=0; j < num_lines; j++) { string fields[]; int num_fields = strsplit(fields, lines[j], '='); for(int k=0; k < num_fields; k++) { if(strlwr(fields[k]) == "// author") { pp_auth_desc[i] = pp_auth_desc[i] + " \t" + fields[k + 1]; } else if(strlwr(fields[k]) == "// description") { pp_auth_desc[i] = pp_auth_desc[i] + " \t" + fields[k + 1]; } } } } string m_maximum_label = "Maximum"; string m_step_size_label = "Step size"; if (SINGLE_PASS) { m_maximum_label = "not used"; m_step_size_label = "not used"; } string m_eagle_compatibility = ""; string m_compatibility = ""; if (EAGLE_VERSION < 5) { m_compatibility = "NOT COMPATIBLE"; } else if (EAGLE_VERSION == 5) { m_compatibility = "verified compatible"; } else if (EAGLE_VERSION == 6) { if (EAGLE_RELEASE <= 3) { m_compatibility = "verified compatible"; } else { m_compatibility = "probably compatible"; } } sprintf(m_eagle_compatibility, "%d.%d (%s)", EAGLE_VERSION, EAGLE_RELEASE, m_compatibility); int Result = dlgDialog("pcb-gcode Setup") { set_uom_suffix(OUTPUT_UNITS); dlgVBoxLayout { dlgLabel( "" "" "" "" "" "" "
" "" "" "" "
Copyright 2004-2013 by" " John Johnson Software, LLC.
" "
All Rights Reserved
" "
Version 3.6.0.4
You have EAGLE version " + m_eagle_compatibility + "
"); if (program_is_setup()) { dlgLabel("
Your current profile is based on the " + CURRENT_PROFILE[DESCRIPTION] + " profile.
"); dlgLabel("
Please use the settings under the tabs to" " customize the gcode that is generated for you.
"); } else { dlgLabel("

Welcome!

" "

Since this is the first time you have run this setup" " program, please select the profile that best suits your machine." " Click the Accept button to save your changes.

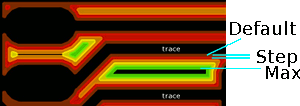

"); } // dlgLabel(""); } dlgTabWidget { /*************************************************************** * * G E N E R A T I O N O P T I O N S * ***************************************************************/ if (program_is_setup()) dlgTabPage("Generation Options") { dlgHBoxLayout { dlgStretch(20); dlgVBoxLayout { dlgGroup("Top Side") { dlgCheckBox("Generate top outlines", GENERATE_TOP_OUTLINES); dlgCheckBox("Generate top drills ", GENERATE_TOP_DRILL); } dlgStretch(1); } dlgVBoxLayout { dlgGroup("Bottom Side") { dlgCheckBox("Generate bottom outlines", GENERATE_BOTTOM_OUTLINES); dlgCheckBox("Generate bottom drills ", GENERATE_BOTTOM_DRILL); dlgCheckBox("Mirror ", MIRROR_BOTTOM); } dlgStretch(1); dlgLabel(""); dlgStretch(3); } dlgVBoxLayout { dlgGroup("Board") { dlgVBoxLayout { dlgCheckBox("Show preview ", SHOW_PREVIEW); dlgGridLayout { dlgCell(0, 0) dlgCheckBox("Generate milling", GENERATE_MILLING); dlgCell(0, 1) dlgLabel("Depth "); dlgCell(0, 2) { dlgRealEdit(MILLING_DEPTH); dlgLabel(m_uom_suffix, YES); } dlgCell(1, 0) dlgCheckBox("Generate text", GENERATE_TEXT); dlgCell(1, 1) dlgLabel("Depth "); dlgCell(1, 2) { dlgRealEdit(TEXT_DEPTH); dlgLabel(m_uom_suffix, YES); } dlgCell(2, 0) dlgCheckBox("Spot drill holes", SPOT_DRILL); dlgCell(2, 1) dlgLabel("Depth"); dlgCell(2, 2) { dlgRealEdit(SPOT_DRILL_DEPTH); dlgLabel(m_uom_suffix, YES); } } dlgGridLayout { dlgCell(0, 0, 0, 1) dlgLabel("Isolation"); dlgCell(0, 1) { dlgCheckBox("Single pass", SINGLE_PASS) { if (SINGLE_PASS) { /* dlgMessageBox("You have selected the single pass option.\n" + "The next time you run pcb-gcode-setup, the Maximum and Step Size " + "options will be hidden. Only Minimum will be shown.\n" + "To change back, just turn Single pass off, " + "click Accept, and run pcb-gcode-setup again.\n" + "The minimum, maximum, and step size options will be available again."); */ m_maximum_label = "not used"; m_step_size_label = "not used"; } else { m_maximum_label = "Maximum"; m_step_size_label = "Step size"; } } } dlgCell(1, 0) dlgLabel("Minimum"); dlgCell(1, 1) { dlgRealEdit(ISO_MIN); dlgLabel(m_uom_suffix, YES); } dlgCell(3, 0) dlgLabel(m_maximum_label, YES); dlgCell(3, 1) { dlgRealEdit(ISO_MAX); dlgLabel(m_uom_suffix, YES); } dlgCell(4, 0) dlgLabel(m_step_size_label, YES); dlgCell(4, 1) { dlgRealEdit(ISO_STEP); dlgLabel(m_uom_suffix, YES); } } dlgSpacing(10); dlgVBoxLayout { dlgLabel("Etching Tool Size "); dlgHBoxLayout { dlgRealEdit(DEFAULT_WIDTH); dlgLabel(m_uom_suffix, YES); } } } } dlgStretch(1); } dlgStretch(20); } dlgHBoxLayout { } } /*************************************************************** * * M A C H I N E * ***************************************************************/ if (program_is_setup()) dlgTabPage("Machine") { dlgHBoxLayout { dlgStretch(20); dlgLabel(""); dlgGroup("Z Axis") { dlgGridLayout { dlgCell(1, 0) dlgLabel("Z High "); dlgCell(1, 1) { dlgRealEdit(DEFAULT_Z_HIGH); dlgLabel(m_uom_suffix, YES); } dlgCell(2, 0) dlgLabel("Z Up "); dlgCell(2, 1) { dlgRealEdit(DEFAULT_Z_UP); dlgLabel(m_uom_suffix, YES); } dlgCell(3, 0) dlgLabel("Z Down "); dlgCell(3, 1) { dlgRealEdit(DEFAULT_Z_DOWN); dlgLabel(m_uom_suffix, YES); } dlgCell(4, 0) dlgLabel("Drill Depth "); dlgCell(4, 1) { dlgRealEdit(DRILL_DEPTH); dlgLabel(m_uom_suffix, YES); } dlgCell(5, 0) dlgLabel("Drill Dwell "); dlgCell(5, 1) dlgRealEdit(DRILL_DWELL, 0); // DO NOT CONVERT } } dlgGroup("Tool Change") { dlgGridLayout { dlgCell(1, 0) dlgLabel("Position X "); dlgCell(1, 1) { dlgRealEdit(TOOL_CHANGE_POS_X); dlgLabel(m_uom_suffix, YES); } dlgCell(2, 0) dlgLabel("Position Y "); dlgCell(2, 1) { dlgRealEdit(TOOL_CHANGE_POS_Y); dlgLabel(m_uom_suffix, YES); } dlgCell(3, 0) dlgLabel("Position Z "); dlgCell(3, 1) { dlgRealEdit(TOOL_CHANGE_POS_Z); dlgLabel(m_uom_suffix, YES); } } } dlgStretch(20); } dlgHBoxLayout { dlgStretch(20); dlgGroup("Units") { dlgRadioButton("Microns", OUTPUT_UNITS) { convert_units(U_MICRONS); } dlgRadioButton("Millimeters", OUTPUT_UNITS) { convert_units(U_MILLIMETERS); } dlgRadioButton("Mils", OUTPUT_UNITS) { convert_units(U_MILS); } dlgRadioButton("Inches", OUTPUT_UNITS) { convert_units(U_INCHES); } } dlgGroup("Spindle") { dlgGridLayout { dlgCell(1, 0) dlgLabel("Spin Up Time "); dlgCell(1, 1) dlgRealEdit(SPINDLE_ON_TIME); // DO NOT CONVERT } } dlgGroup("Feed Rates") { dlgGridLayout { dlgCell(1, 0) dlgLabel("X Y "); dlgCell(1, 1) { dlgRealEdit(FEED_RATE); dlgLabel(m_uom_suffix, YES); dlgLabel("/min"); } dlgCell(2, 0) dlgLabel("Z "); dlgCell(2, 1) { dlgRealEdit(FEED_RATE_Z); dlgLabel(m_uom_suffix, YES); dlgLabel("/min"); } } } dlgGroup("Misc") { dlgGridLayout { dlgCell(1, 0) dlgLabel("Epsilon"); dlgCell(1, 1) { dlgRealEdit(EPSILON); dlgLabel(m_uom_suffix, YES); dlgPushButton("?") { dlgMessageBox("If an X or Y move is less than this amount, do not " "put a move in the g-code file. For instance, if one point is " "only 0.00001\" away from another point, there is no need to " "write the move to the g-code file, since the machine will not " "move anyway. This helps make the g-code file smaller, and run faster."); } } dlgCell(2, 0) dlgLabel("Default Drill Rack File"); dlgCell(2, 1) dlgStringEdit(DEFAULT_DRILL_FILE); dlgCell(2, 2) { dlgPushButton("...") { DEFAULT_DRILL_FILE = dlgFileOpen("Find default drill rack file", g_path + "/settings", "Drill files (*.drl);;All files (*.*)"); } dlgPushButton("?") { dlgMessageBox( "Please see docs/readme.html for full details.
" "pcb-gcode will look for (in order):
" "board.drl
" "The file you select here.
" "path_to_pcbgcode/settings/default.drl
" "If this setting is blank, and it does not find a file, " "it will assume you do not want to use a rack file.
" "If this setting is not blank, and it cannot find one of the " "files listed above, it will give you an error message." ); } } } } dlgStretch(20); } } /*************************************************************** * * G C O D E S T Y L E * ***************************************************************/ dlgTabPage("GCode Style") { dlgLabel("Please select your style of gcode below."); dlgLabel("If you make changes to gcode-defaults.h to " "work with your machine,"); dlgLabel( "Please email the file to " "pcbgcode@pcbgcode.org for possible inclusion " "in the next release."); dlgListView("File\tAuthor\tDescription", pp_auth_desc, pp_selection); } /*************************************************************** * * G C O D E O P T I O N S * ***************************************************************/ if (program_is_setup()) dlgTabPage("GCode Options") { dlgHBoxLayout { dlgVBoxLayout { dlgGroup("NC File Comments") { dlgCheckBox("NC File Comment from Board", NC_FILE_COMMENT_FROM_BOARD); dlgCheckBox("Nc File Comment Date", NC_FILE_COMMENT_DATE); dlgCheckBox("Nc File Comment Machine Settings", NC_FILE_COMMENT_MACHINE_SETTINGS); dlgCheckBox("Nc File Comment Pcb Defaults Settings", NC_FILE_COMMENT_PCB_DEFAULTS_SETTINGS); } // dlgStretch(1); } dlgGroup("Other Options") { dlgHBoxLayout { dlgVBoxLayout { dlgCheckBox("Use user gcode (from user-gcode.h)", USER_GCODE); dlgCheckBox("Debug Flag", g_debug_flag); dlgCheckBox("Do tool change with zero step", DO_TOOL_CHANGE_WITH_ZERO_STEP); dlgCheckBox("Flip board in Y instead of X", FLIP_BOARD_IN_Y); } dlgVBoxLayout { dlgCheckBox("Compact gcode", COMPACT_GCODE); dlgHBoxLayout { dlgCheckBox("Use line numbers?", USE_LINE_NUMBERS); dlgLabel(" Format "); dlgStringEdit(LINE_NUMBER_FORMAT); } dlgCheckBox("Use simple drill code ", SIMPLE_DRILL_CODE); } } // dlgStretch(1); } } dlgHBoxLayout { dlgGroup("File Naming") { dlgGridLayout { dlgCell(0, 0, 0, 1) { dlgLabel("Filename Base "); dlgStringEdit(FILENAME_BASE); } dlgCell(0, 2) { dlgLabel("Extension "); dlgStringEdit(DEFAULT_EXTENSION); dlgStretch(1); } dlgCell(2, 0) { dlgLabel("Word for 'etch'"); dlgStringEdit(ETCH_FILE_NAME); } dlgCell(2, 1) { dlgLabel("Word for 'drill'"); dlgStringEdit(DRILL_FILE_NAME); } dlgCell(2, 2) { dlgLabel("Word for 'mill'"); dlgStringEdit(MILL_FILE_NAME); } dlgCell(2, 3) { dlgLabel("Word for 'text'"); dlgStringEdit(TEXT_FILE_NAME); dlgStretch(1); } dlgCell(3, 0) { dlgLabel("Word for 'top'"); dlgStringEdit(TOP_FILE_NAME); } dlgCell(3, 1) { dlgLabel("Word for 'bottom'"); dlgStringEdit(BOT_FILE_NAME); } } dlgHBoxLayout { dlgGroup("Top (Component) Side Files") { dlgGridLayout { dlgCell(1, 0) dlgLabel("Etching "); dlgCell(1, 1) { dlgStringEdit(FILENAME_TOP_ETCH_FILE); } dlgCell(2, 0) dlgLabel("Drill "); dlgCell(2, 1) { dlgStringEdit(FILENAME_TOP_DRILL_FILE); } dlgCell(3, 0) dlgLabel("Mill "); dlgCell(3, 1) { dlgStringEdit(FILENAME_TOP_MILL_FILE); } dlgCell(4, 0) dlgLabel("Text "); dlgCell(4, 1) { dlgStringEdit(FILENAME_TOP_TEXT_FILE); } } } dlgGroup("Bottom (Solder) Side Files") { dlgGridLayout { dlgCell(1, 0) dlgLabel("Etching "); dlgCell(1, 1) dlgStringEdit(FILENAME_BOT_ETCH_FILE); dlgCell(2, 0) dlgLabel("Drill "); dlgCell(2, 1) dlgStringEdit(FILENAME_BOT_DRILL_FILE); dlgCell(3, 0) dlgLabel("Mill "); dlgCell(3, 1) dlgStringEdit(FILENAME_BOT_MILL_FILE); dlgCell(4, 0) dlgLabel("Text "); dlgCell(4, 1) dlgStringEdit(FILENAME_BOT_TEXT_FILE); } } // dlgStretch(1); dlgVBoxLayout { dlgPushButton("Test Filenames") { FILENAME_TOP_ETCH_FILE_SAMPLE = sub_side_phase( FILENAME_BASE + FILENAME_TOP_ETCH_FILE, TOP, PH_TOP_OUT_WRITE); FILENAME_TOP_DRILL_FILE_SAMPLE = sub_side_phase( FILENAME_BASE + FILENAME_TOP_DRILL_FILE, TOP, PH_TOP_DRILL); FILENAME_TOP_MILL_FILE_SAMPLE = sub_side_phase( FILENAME_BASE + FILENAME_TOP_MILL_FILE, TOP, PH_MILL); FILENAME_TOP_TEXT_FILE_SAMPLE = sub_side_phase( FILENAME_BASE + FILENAME_TOP_TEXT_FILE, TOP, PH_TEXT); FILENAME_BOT_ETCH_FILE_SAMPLE = sub_side_phase( FILENAME_BASE + FILENAME_BOT_ETCH_FILE, BOTTOM, PH_BOTTOM_OUT_WRITE); FILENAME_BOT_DRILL_FILE_SAMPLE = sub_side_phase( FILENAME_BASE + FILENAME_BOT_DRILL_FILE, BOTTOM, PH_BOTTOM_DRILL); FILENAME_BOT_MILL_FILE_SAMPLE = sub_side_phase( FILENAME_BASE + FILENAME_BOT_MILL_FILE, BOTTOM, PH_MILL); FILENAME_BOT_TEXT_FILE_SAMPLE = sub_side_phase( FILENAME_BASE + FILENAME_BOT_TEXT_FILE, BOTTOM, PH_TEXT); FILENAME_TOP_ETCH_FILE_SAMPLE = substitute( FILENAME_TOP_ETCH_FILE_SAMPLE, key_value_record(" ", "_")); FILENAME_TOP_DRILL_FILE_SAMPLE = substitute( FILENAME_TOP_DRILL_FILE_SAMPLE, key_value_record(" ", "_")); FILENAME_TOP_MILL_FILE_SAMPLE = substitute( FILENAME_TOP_MILL_FILE_SAMPLE, key_value_record(" ", "_")); FILENAME_TOP_TEXT_FILE_SAMPLE = substitute( FILENAME_TOP_TEXT_FILE_SAMPLE, key_value_record(" ", "_")); FILENAME_BOT_ETCH_FILE_SAMPLE = substitute( FILENAME_BOT_ETCH_FILE_SAMPLE, key_value_record(" ", "_")); FILENAME_BOT_DRILL_FILE_SAMPLE = substitute( FILENAME_BOT_DRILL_FILE_SAMPLE, key_value_record(" ", "_")); FILENAME_BOT_MILL_FILE_SAMPLE = substitute( FILENAME_BOT_MILL_FILE_SAMPLE, key_value_record(" ", "_")); FILENAME_BOT_TEXT_FILE_SAMPLE = substitute( FILENAME_BOT_TEXT_FILE_SAMPLE, key_value_record(" ", "_")); temp_str = ";Test Filenames\n" "Spaces in file paths have been " "replaced with underscores _ to keep " "the lines from wrapping.\n" "Top:\n" "Etch:\t" + FILENAME_TOP_ETCH_FILE_SAMPLE + "\n" + "Drill:\t" + FILENAME_TOP_DRILL_FILE_SAMPLE + "\n" + "Mill:\t" + FILENAME_TOP_MILL_FILE_SAMPLE + "\n" + "Text:\t" + FILENAME_TOP_TEXT_FILE_SAMPLE + "\n" + "\nBottom:\n" "Etch:\t" + FILENAME_BOT_ETCH_FILE_SAMPLE + "\n" + "Drill:\t" + FILENAME_BOT_DRILL_FILE_SAMPLE + "\n" + "Mill:\t" + FILENAME_BOT_MILL_FILE_SAMPLE + "\n" + "Text:\t" + FILENAME_BOT_TEXT_FILE_SAMPLE + "\n"; dlgMessageBox(temp_str); } dlgPushButton("Help") { dlgMessageBox(filename_subs_help()); } // dlgStretch(1); } } } } } if (program_is_setup()) dlgTabPage("Plugins") { #include "plugins/plugin_loader.h" } /*************************************************************** * * O T H E R * ***************************************************************/ if (program_is_setup()) dlgTabPage("Other") { dlgHBoxLayout { dlgStretch(1); dlgVBoxLayout { dlgStretch(1); dlgGroup("Miscellaneous") { dlgGridLayout { dlgCell(0, 0, 0, 5) { dlgLabel("All misc. options are deprecated."); } } } dlgPushButton("Reset to Factory Defaults") { if (dlgMessageBox( "This is going to change the following files" " back to their default contents, erasing any changes" " you may have made to them:

" "" "" "" "
pcb-defaults.hpcb-gcode-options.h
pcb-machine.huser-gcode.h

" "Is that something you want to do?

" "If you aren't sure, click No.", "-Yes", "+No") == 0 /*Yes*/) { restore_file_defaults(); exit("run pcb-gcode-setup"); } } dlgStretch(1); } dlgStretch(1); } } } dlgHBoxLayout { dlgStretch(5); dlgPushButton("+&Accept") dlgAccept(); if (program_is_setup()) { dlgPushButton("Accept and make my &board") dlgAccept(2); } dlgPushButton("-Cancel") { if (dlgMessageBox("Cancel your changes.

" "Are you sure?", "Yes", "No") == 0) dlgReject(); } } }; // Accept Accept and make board if (Result == 1 || Result == 2) { fileerror(); output(g_path + "/settings/pcb-defaults.h", "wt") { int now = time(); printf( "//\n// Default values for generating gcode from a PCB.\n//\n"); printf("// These settings were last changed with " "pcb-gcode-setup: %s\n//\n", t2string(now)); printf("//\n// Changes you make in this file will be overwritten " "if you use pcb-gcode-setup.\n//\n\n"); write_bool_param("SINGLE_PASS", SINGLE_PASS); write_real_param("ISO_MIN", ISO_MIN); write_real_param("ISO_MAX", ISO_MAX); write_real_param("ISO_STEP", ISO_STEP); printf("\n"); write_bool_param("GENERATE_TOP_OUTLINES", GENERATE_TOP_OUTLINES); write_bool_param("GENERATE_TOP_DRILL", GENERATE_TOP_DRILL); write_bool_param("GENERATE_TOP_FILL", GENERATE_TOP_FILL); printf("\n"); write_bool_param("GENERATE_BOTTOM_OUTLINES", GENERATE_BOTTOM_OUTLINES); write_bool_param("GENERATE_BOTTOM_DRILL", GENERATE_BOTTOM_DRILL); write_bool_param("GENERATE_BOTTOM_FILL", GENERATE_BOTTOM_FILL); write_bool_param("MIRROR_BOTTOM", MIRROR_BOTTOM); write_bool_param("SIMPLE_DRILL_CODE", SIMPLE_DRILL_CODE); printf("\n"); write_bool_param("GENERATE_MILLING", GENERATE_MILLING); printf("\n"); write_bool_param("GENERATE_TEXT", GENERATE_TEXT); printf("\n"); write_bool_param("SPOT_DRILL", SPOT_DRILL); write_real_param("SPOT_DRILL_DEPTH", SPOT_DRILL_DEPTH); printf("\n"); write_bool_param("DO_TOOL_CHANGE_WITH_ZERO_STEP", DO_TOOL_CHANGE_WITH_ZERO_STEP); printf("\n"); write_bool_param("FLIP_BOARD_IN_Y", FLIP_BOARD_IN_Y); printf("\n"); // Place a // in front of units not being used if (OUTPUT_UNITS != U_MICRONS) printf("//"); write_int_defined("OUTPUT_UNITS", "U_MICRONS"); if (OUTPUT_UNITS != U_MILLIMETERS) printf("//"); write_int_defined("OUTPUT_UNITS", "U_MILLIMETERS"); if (OUTPUT_UNITS != U_MILS) printf("//"); write_int_defined("OUTPUT_UNITS", "U_MILS"); if (OUTPUT_UNITS != U_INCHES) printf("//"); write_int_defined("OUTPUT_UNITS", "U_INCHES"); } if(fileerror()) exit(1); if(pp_selection > -1) { if (dlgMessageBox( "If you have made manual changes to gcode-defaults.h, they" " will be overwritten by your new gcode style selection.

" "(Click Yes if you aren't sure.)

" "Save your selection?", "Yes", "No") == 0) { filecopy(pp_files[pp_selection], g_path + "/settings/gcode-defaults.h"); fileerror(); set_current_profile(pp_auth_desc[pp_selection]); if(fileerror()) exit(1); m_setup_was_changed = YES; } } output(g_path + "/settings/pcb-gcode-options.h") { printf("//\n"); printf("// General Options "); printf("// Your edits to this file will be overwritten" " by the setup program.\n"); printf("//\n"); write_bool_param("SHOW_PROGRESS", SHOW_PROGRESS); write_string_param("RESTORE_MENU_FILE", RESTORE_MENU_FILE); write_bool_param("NC_FILE_COMMENT_FROM_BOARD", NC_FILE_COMMENT_FROM_BOARD); write_bool_param("NC_FILE_COMMENT_DATE", NC_FILE_COMMENT_DATE); write_bool_param("NC_FILE_COMMENT_MACHINE_SETTINGS", NC_FILE_COMMENT_MACHINE_SETTINGS); write_bool_param("NC_FILE_COMMENT_PCB_DEFAULTS_SETTINGS", NC_FILE_COMMENT_PCB_DEFAULTS_SETTINGS); write_bool_param("USER_GCODE", USER_GCODE); write_bool_param("g_debug_flag", g_debug_flag); write_bool_param("COMPACT_GCODE", COMPACT_GCODE); write_bool_param("USE_LINE_NUMBERS", USE_LINE_NUMBERS); write_string_param("LINE_NUMBER_FORMAT", LINE_NUMBER_FORMAT); write_bool_param("SHOW_PREVIEW", SHOW_PREVIEW); write_string_param("FILENAME_BASE", FILENAME_BASE); write_string_param("FILENAME_TOP_ETCH_FILE", FILENAME_TOP_ETCH_FILE); write_string_param("FILENAME_TOP_DRILL_FILE", FILENAME_TOP_DRILL_FILE); write_string_param("FILENAME_TOP_MILL_FILE", FILENAME_TOP_MILL_FILE); write_string_param("FILENAME_TOP_TEXT_FILE", FILENAME_TOP_TEXT_FILE); write_string_param("FILENAME_TOP_FILL_FILE", FILENAME_TOP_FILL_FILE); write_string_param("FILENAME_BOT_ETCH_FILE", FILENAME_BOT_ETCH_FILE); write_string_param("FILENAME_BOT_DRILL_FILE", FILENAME_BOT_DRILL_FILE); write_string_param("FILENAME_BOT_MILL_FILE", FILENAME_BOT_MILL_FILE); write_string_param("FILENAME_BOT_TEXT_FILE", FILENAME_BOT_TEXT_FILE); write_string_param("FILENAME_BOT_FILL_FILE", FILENAME_BOT_FILL_FILE); write_string_param("ETCH_FILE_NAME", ETCH_FILE_NAME); write_string_param("DRILL_FILE_NAME", DRILL_FILE_NAME); write_string_param("MILL_FILE_NAME", MILL_FILE_NAME); write_string_param("TEXT_FILE_NAME", TEXT_FILE_NAME); write_string_param("TOP_FILE_NAME", TOP_FILE_NAME); write_string_param("BOT_FILE_NAME", BOT_FILE_NAME); write_string_param("DEFAULT_EXTENSION", DEFAULT_EXTENSION); write_string_param("DEFAULT_DRILL_FILE", DEFAULT_DRILL_FILE); } output(g_path + "/settings/pcb-machine.h") { printf("//\n"); printf("// For ease of use, and to avoid overwritting your settings,\n"); printf("// use pcb-gcode-setup to make changes to these settings.\n"); printf("//\n\n"); write_real_param("DEFAULT_Z_HIGH", DEFAULT_Z_HIGH); write_real_param("DEFAULT_Z_UP", DEFAULT_Z_UP); write_real_param("DEFAULT_Z_DOWN", DEFAULT_Z_DOWN); write_real_param("DRILL_DEPTH", DRILL_DEPTH); write_real_param("DRILL_DWELL", DRILL_DWELL); write_real_param("SPINDLE_ON_TIME", SPINDLE_ON_TIME); write_real_param("MILLING_DEPTH", MILLING_DEPTH); write_real_param("TEXT_DEPTH", TEXT_DEPTH); write_real_param("TOOL_CHANGE_POS_X", TOOL_CHANGE_POS_X); write_real_param("TOOL_CHANGE_POS_Y", TOOL_CHANGE_POS_Y); write_real_param("TOOL_CHANGE_POS_Z", TOOL_CHANGE_POS_Z); write_real_param("FEED_RATE", FEED_RATE); write_real_param("FEED_RATE_Z", FEED_RATE_Z); write_real_param("DEFAULT_WIDTH", DEFAULT_WIDTH); write_real_param("X_OFFSET", X_OFFSET); write_real_param("Y_OFFSET",Y_OFFSET); write_real_param("X_HOME", X_HOME); write_real_param("Y_HOME",Y_HOME); write_real_param("EPSILON", EPSILON); } } m_cmd = ""; switch (Result) { // Accept case 1: if (m_setup_was_changed) m_cmd = "run pcb-gcode-setup;\n"; break; // Accept and make board case 2: // dlgMessageBox("g_path = \"" + g_path + "\""); m_cmd = "run pcb-gcode;\n"; break; } if (SHOW_PROGRESS && RESTORE_MENU_FILE != "") { m_cmd = "script " + RESTORE_MENU_FILE + ";\n" + m_cmd; } exit(m_cmd);
